This style lockset is no
longer available.  The only
solution to make your door
functional is to purchase separate door handle and dead-bolt from Lowes or
Home Depot.  Note that
you will need to touch up
the area that will not
be covered by the old
finishing plate.

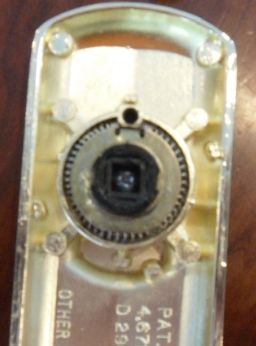

  This is what a properly installed
  busing kit looks like in a door
  handle assembly.



Hurd Door Parts
>Swinging



       Swinging Patio Door Parts Primed Wood  and Aluminum Clad


      In-swinging  Patio Door Parts

       HANDLE SETS                                                     *all prices include shipping




066823 Operating Door -
3 point hardware
Trim and Handle Set

Active handle is for the main active door. It has a keyed cylinder.

Reversible handle. Not handed.

Antique Brass 245.75
13252 Bright Brass 245.75
13342 White Trim 245.75
85429 Brushed Chrome 265.75
85431 Polished Chrome 265.75
85427 Oil Rubbed 265.75
11781 11782 Dummy Handle-
3 point hardware
Semi-Active Trim and Handle Set
Dummy handle does not function. If you have a double door where the semi-active door is locked by flipping the manual throw bolts, but you wanted it to have a matching handle, then you would get the dummy & it just screws to the face of the door. Decorative only.

From the exterior looking in, is the door on the left or right

Antique Brass


245.75
10319 10320

Bright Brass

245.75
11783 11784

White

245.75
85456 85457

Brushed Chrome

245.75
85458 85459

Polished Chrome

245.75
85454 85455

Oil Rubbed

265.75
22436 Gear Driven - 3 point hardware
Semi-Active Trim and Handle Set
Gear driven semi active – this is if you have a double door & the semi-active door does not have manual throw bolts, but has its own locking system that requires the handle to throw the shoot bolts. This handle works the same way as the active, however it does not have a keyed cylinder. Only has a thumb turn on the inside.

Antique Brass

245.75
22435 Bright Brass 245.75
25859 White 245.75
85430 Brushed Chrome 265.75
85432 Polished Chrome 265.75
85428 Oil Rubbed 265.75

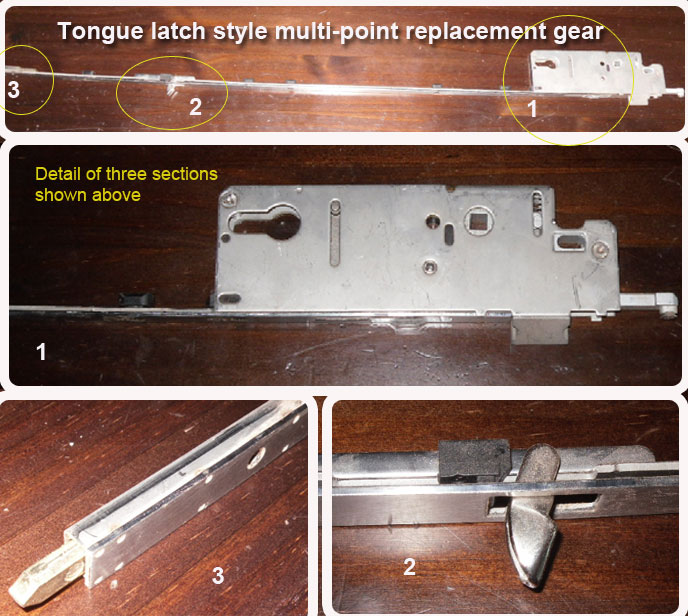

8778107
Multi-point replacement gear
Tongue latch style

Note: existing part should have “Hoppe” stamped in the steel near the door latch. If it says “fuhr” these parts will not work. You will need to fill out the Hoppe conversion form & return to us for a quote.



Click to view detail

225.00
085460
Multi-point replacement gear
Roller latch style

Note: existing part should have “Hoppe” stamped in the steel near the door latch. If it says “Fuhr” these parts will not work. You will need to fill out the Hoppe conversion form & return to us for a quote.



Click to view detail

225.00

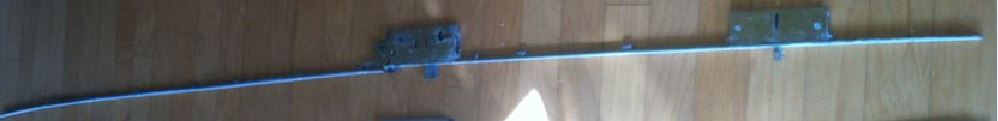

8778139 Round bolt
multi-point lock
Some rare Hurd doors used the lock shown here.


Click to view detail

246.00

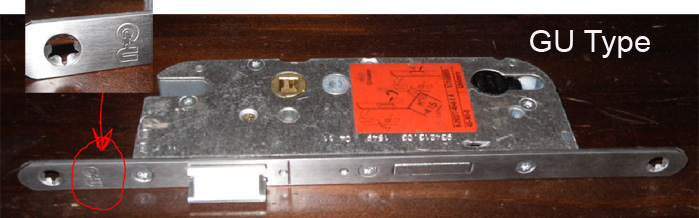

096140 Single point lock box
GU Type


Click to view detail

145.00

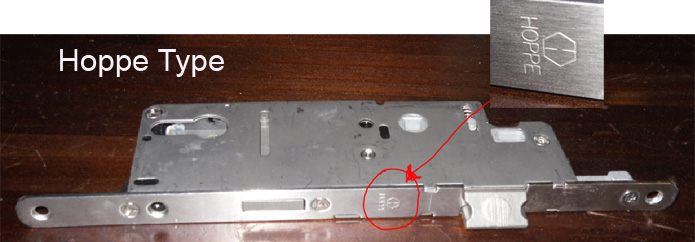

11517499 Single point lock box
Hoppe Type


Click to view detail

114.25

GENERAL PARTS FOR HURD SWINGING DOORS

          *Price includes shipping

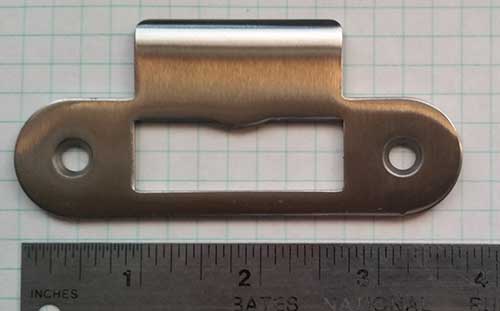

095945

 Multipoint Strike Plate
 Stainless Steel




37.80
012606

 Multipoint center latch lock strike
 With spring loaded latch

23.80
020174

 Multipoint top & bottom strike
 receiver.
Like center strike above but
 without  spring loaded latch.



Set of 2

22.50

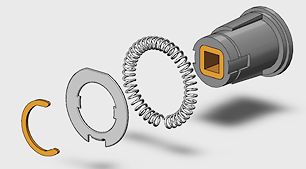

1200-7-1001

Replacement Bushing Kit
This will rebuild either one interior or
one exterior escutcheon assembly.
Two kits are required to rebuild the
complete door handle assembly.


See image left for example of parts installed..
Includes:
1 - Zinc Die-Cast Bushing,
1 - Spring
1 - Retaining Washer
1 - Cir-clip

26.25

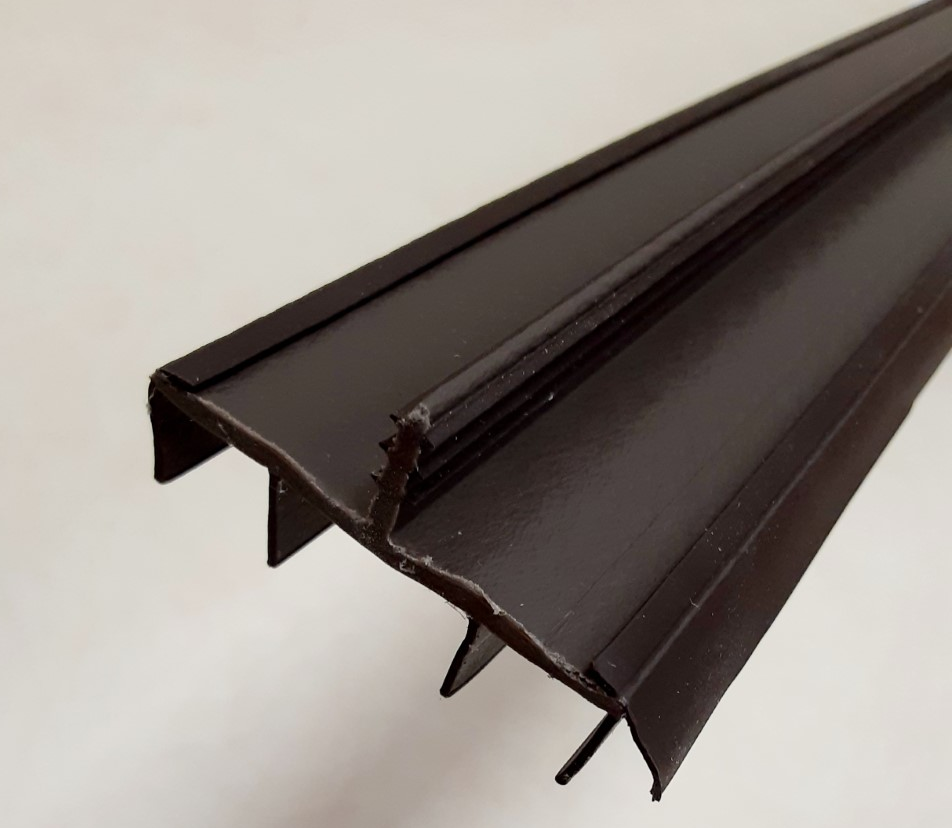

097842

Active Door Sweep
Helpful Hint:  Remove your door by removing hinge pins.  Remove old door sweep and staples that may be holding it on.  Clean the bottom of the door, add a bead of silicone to the bottom edge of your door and staple the new door sweep on to the door bottom. The silicone with give you an added guard against future moisture penetration into your door panel.

Lite Grey color shown above is no longer available.  The replacement is brown.
Each sweep is 3ft (36in).

28.15

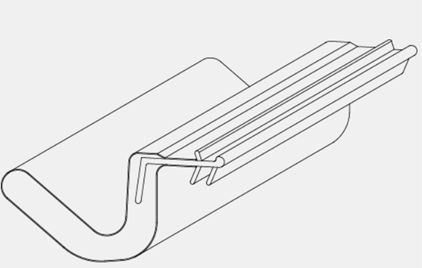

099932

Weatherstrip for swinging patio doors with fiberglass sill
A common wear item on in-swinging patio doors with fiberglass sills.  10ft length

25.50
25701,2,3 Screen Rollers
Sold in Pairs

46.95
 Screen Rollers
  Sold in Pairs

New Style



27.50

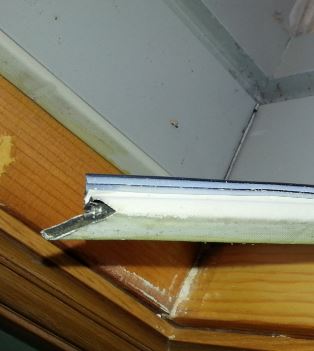

Replacement weather stripping sets

Fits doors up to 96” high and 72” wide.
Trim to fit, includes side and head weather strip. Does not include sill or door bottom.



 75.45



REPLACEMENT SCREEN DOORS - We do not sell Hurd screen doors due to the high cost of shipping them safely. Please visit http://www.hurd.com/dealers and search
for a local dealer.  A local dealer can have the screen delivered to their facility for local pick up and defer any cost of freight as Hurd does not charge freight to its dealers.



^top  |  Complete parts diagram for swinging doors mfg prior to 2004





.
