These sliding door handles
are no longer available.
If your door won't lock, you
may just need a new latch assembly. Shown right.
Uses the latch assembly with the gray cylinder.

These sliding door handles
are no longer available.
Order Elite-C handle shown right for a working solution. ------>
If your door won't lock, you
may just need a new latch assembly. Uses the latch assembly with the black cylinder.

Hurd Door Parts
> Sliding

Sliding Patio Door Parts Primed Wood and Aluminum Clad

HANDLE SETS *all prices include shipping

Part#	Item	Size or Description	Option	Price	Add to Cart
038553 038552	Foot Lock Package			42.50

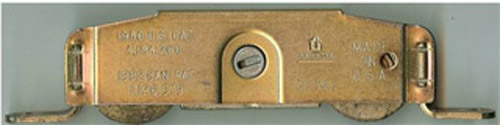

012021	Replacement Roller	One size fits all.		44.95
011771	Interior Mounting Plate for door handle	Tips: 1 Ensure the door is properly adjusted. The door should slide back and forth evenly, not rocking when you pull it open or closed. This typically means the wheels are off track, not evenly adjusted in height or broken. 2 When you install your back plate, you can put Locktite ™ on each screw. This will hold the screw securely and not allow it to loosen up over time. A loose screw causes the plate to move around when you open and close the door and greatly shortens the life to the casting.	No longer available
019036 Gray 022190 Black or Gold	Latch assembly Often the culprit in a door that cannot be locked. The old one must be replaced with the same version (determined by color of cylinder) or the keyed cylinder will not fit.	If the cylinder is in the 45 degree position with the latch in the unlocked position, then 019036 would be correct. If the cylinder is at 90 degrees when in the unlocked position, you need 022190.		46.45
013245	Elite - C Handle Fits Hurd sliding doors mfg between 1993 - 2006	Replacement for discontinued sliding door handle shown left. This is not a perfect fit, but a working solution. You will have to fill in the top hole that will remain from the old style handle.	$155 without keyed cylinder $175 with keyed cylinder Handle is 8 1/2" long. Mounting holes are 5 1/2" CTC Latch assembly sold separately.

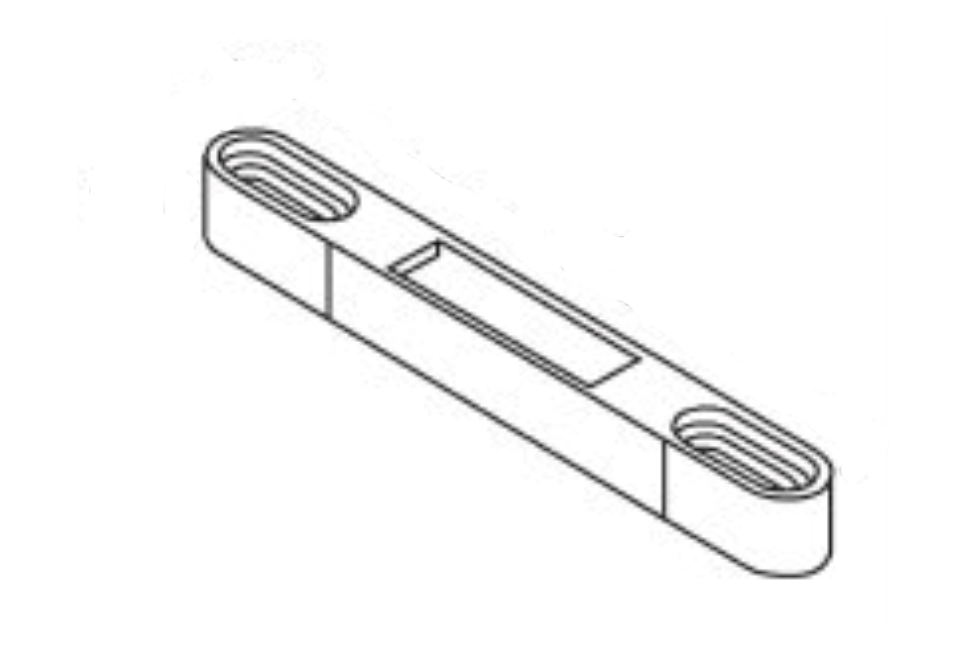

	Single-Point Door Keeper			14.99

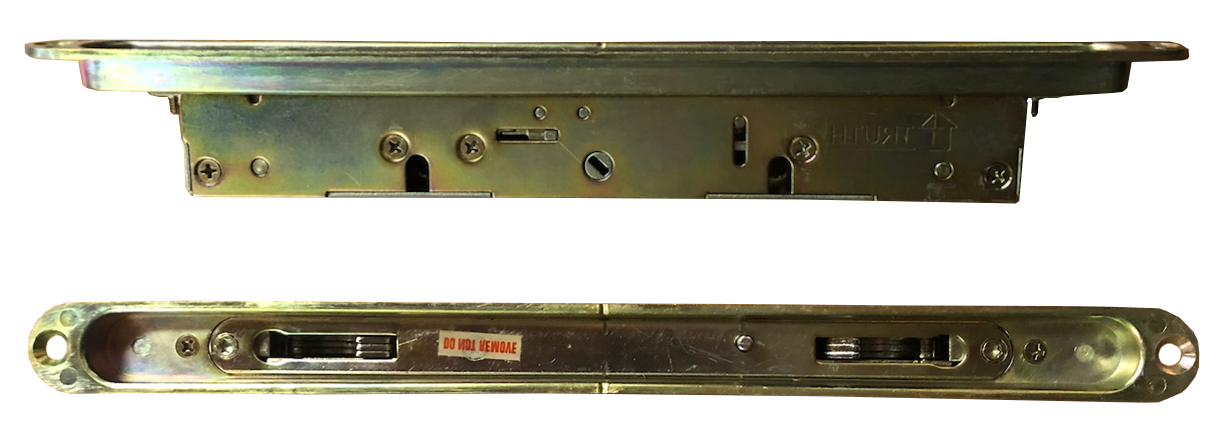

HRP502	2-Point Sliding Door Mortise Latch			74.99
HRP503	2-Point Sliding Door Mortise Keeper			14.99
025701 025703	Screen Rollers Sold in Pairs			27.50
096405	Screen Rollers Sold in Pairs	New Style		27.50
024194	Folding Nailing Fin	Used at the head and sides. Sold in 6 foot lengths		34.80 /6'
076101	Sliding Screen Door Handle	Black Plastic		21.00
096407	Sliding Screen Door Anti-Rattle/ Keeper Package	Package includes: 2 - Black Anti-Rattle Guides 1 - Screen Keeper 2 - #6 x 1/2" Screws		13.50

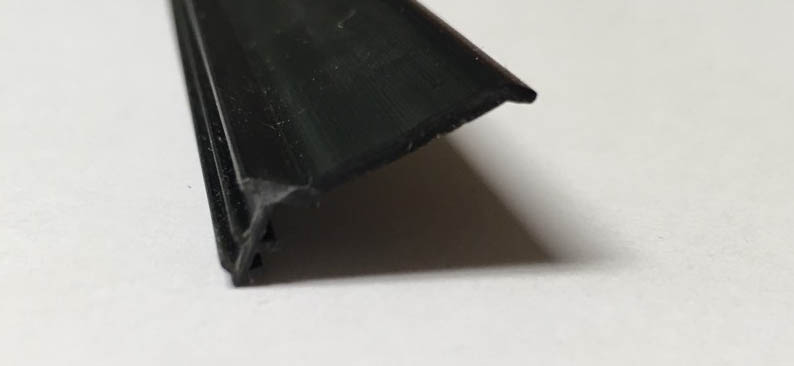

037330	Black Fiberglass Sill Seal	Sold in 7 foot lengths For doors sold prior to 2006.		33.75 /7'

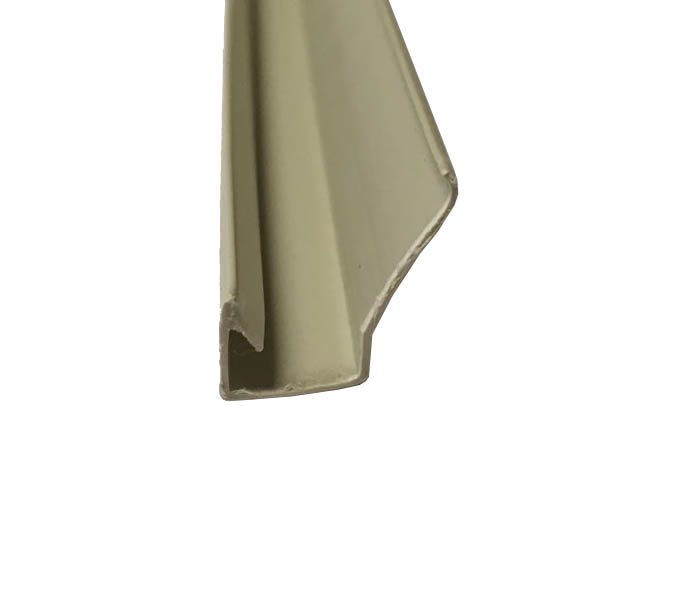

037395	Tan vinyl side stop weather stripping	Sold in 7 foot lengths Inside side stop on side jamb.		52.25 /7'
015625	Head Seal	Hurd vinyl head door seal 6ft length - Sand		55.00 /6'
010577	L/F Interlock Pile Weatherstrip	Sold in 20 foot lengths Channel in Interlock		22.25 /20'
HRP494	Sill Weep Cover			10.99
098471	Foot Bolt Sill Strike			42.25
037224 010612	1/2" Snap Plugs Package of 2			8.95

GRILLE PARTS Price includes shipping PLEASE STUDY* these photographs and be sure they look like your clip. Many builders and Hurd distributors used aftermarket grills and clips. If your clips do not look like the ones in these images, and do not measure exactly 1” or 5/8” wide, our clips will not work on your grille.
5/8" Traditional Knock Down Type Grille Clips		14.95 Bag of 12
1" Regal Knock Down Type Grille Clips		18.95 Bag of 12
Push Pin and Grommet Style for Full Surround Door Grilles		29.25 Bag of 12
Grille Clips 092890		18.00 Bag of 6
Screen Retainer Clips 050954		14.99 Bag of 12

REPLACEMENT SCREEN DOORS - We do not sell Hurd screen doors due to the high cost of shipping them safely. Please visit http://www.hurd.com/dealers and search
for a local dealer. A local dealer can have the screen delivered to their facility for local pick up and defer any cost of freight as Hurd does not charge freight to its dealers.

^top | Aluminum Clad Sliding door parts diagram prior to 9/2006
