Hurd Window Parts  >Double Hung
> Easy Tilt
> Primed Wood:

     EASY TILT STYLE
     Double Hung Primed Wood Window Parts

BALANCE ASSEMBLIES  for Double Hung EASY TILT Primed Wood Windows   Assuming your upper and lower sashes are the same size, measure the visible glass dimension of your lower sash and round up to the nearest even inch.  If you measure 27 1/2" W x 19 1/2" H, you would order a balance assembly for a 28" glass width and select the 20" glass height. Balance assemblies are made to order and require 2-3 weeks lead time.  No cancellations, exchanges or returns. We will be in contact shortly after the purchase of each balance assembly. One of our sales reps will reach out asking for pictures of the balances being replaced, the visible glass dimensions in one of the window sashes, and the exterior material of the window. Once we have all of that info confirmed, we'll be sure to place your order! Fill Out This Form to Get Your Balance Assembly Faster! Price includes shipping.
Note: Beige color shown above is no longer available. White only.
Select Glass Size W x H Width 16 inch 20 inch 24 inch 28 inch 32 inch 36 inch 40 inch X Height 14 inch 16 inch 20 inch 22 inch 24 inch 26 inch 28 inch 30 inch 24/36 inch 32 inch 34 inch 36 inch 40 inch 42 inch See example above. Sold as a set, left and right side jambliners.	White Beige	$249.00 *Includes shipping

REPLACEMENT SCREENS  for Double Hung EASY TILT STYLE Primed Wood Windows   FREE Shipping when you buy 3 or more screens. Mix and match can be Casement, Awning, or Double Hung.  An additional shipping & handling fee of $120 will be applied on orders of 1 screen or $60 on orders of 2 screens. *Determine screen size by measuring the dimensions of the glass width and glass height.
Size - Width x Height Size refers to Glass Dimension. How to Determine Size - Click Here Cottage style (top and bottom are not the same size) Assistance required	Color	Price	Add to Cart
16 inch X Select Height 12 inch 14 inch 16 inch 20 inch 22 inch 24 inch 26 inch 28 inch 30 inch 24/36 inch 32 inch 34 inch 36 inch 40 inch 42 inch	Select Color Eggshell Bronze White Sand Green Brick Red	$107.00
Select Width 20" Width 24" Width 28" Width 32" Width 36" Width 40" Width X Select Height 14 inch 16 inch 20 inch 22 inch 24 inch 26 inch 28 inch 30 inch 24/36 inch 32 inch 34 inch 36 inch 40 inch 42 inch	Select Color Eggshell Bronze White Sand Green Brick Red	$107.00
Screen Parts for HURD Windows   *all prices below include shipping - continental US only.
Corner Keys - Mfg. pre 12/06	Select Color Bronze White Gold	13.27 Set of 4
Corner Keys- Mfg. after 12/06	Select Color Bronze White Gold	12.75 Set of 4
Screen Spline		$12.50 per 20ft
Screen Plunger Set 4 Caps, 4 Screen Springs, and 4 Screen Plungers	Select Color White Black	$16.50

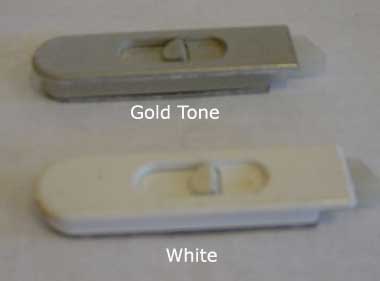

Tilt Latches Sold in sets of 2	Select Finish Gold Tone White	$26.00 /set
Hurd Sash Tilt Pins		$8.50 Sold in Pairs

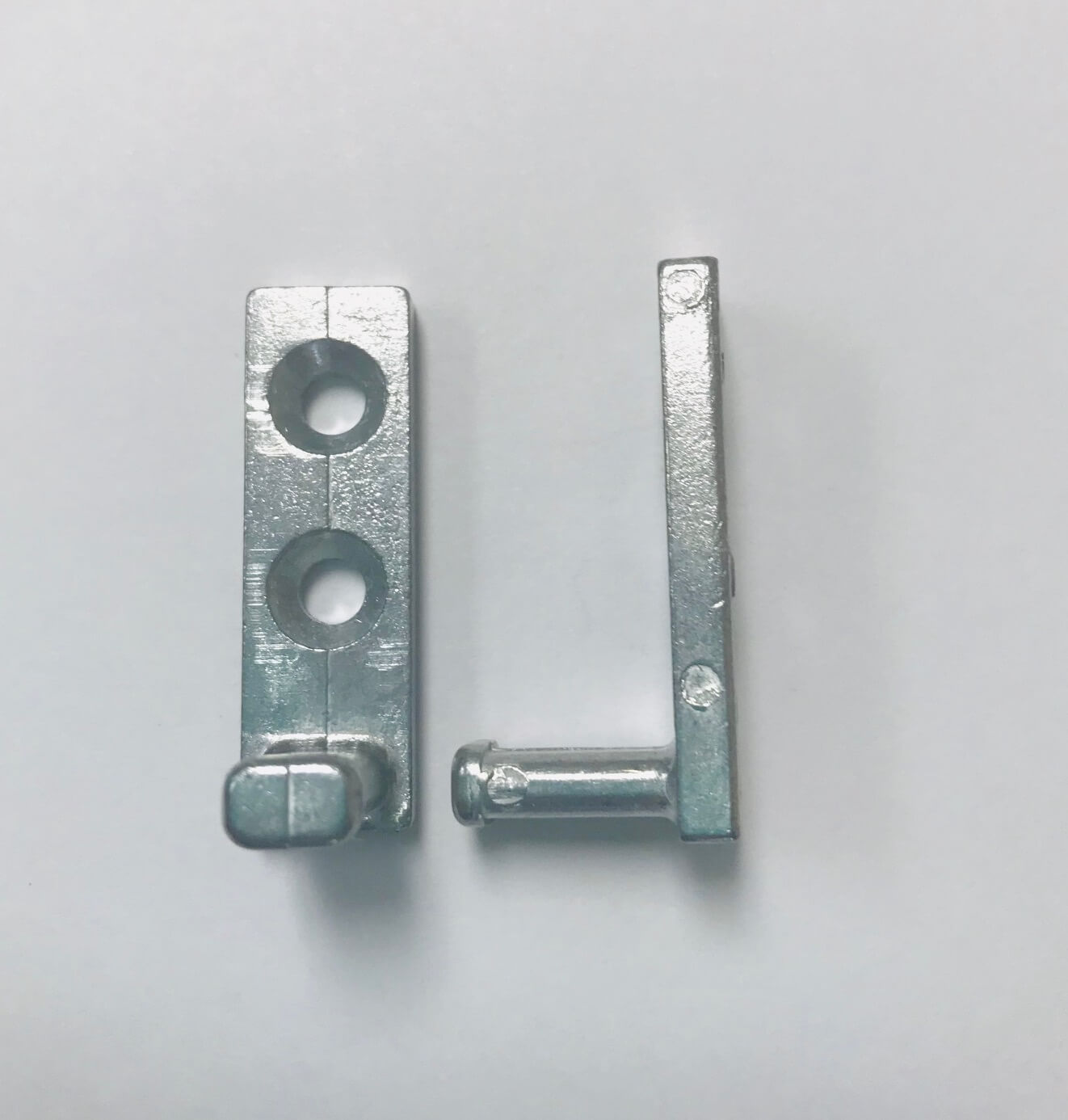

EZT Style, Double Hung Tilt Pin, 2012 to Present, For Concealed Jamb Liners		$8.50 Sold in Pairs
Hurd Track/Clutch Shoes for block and tackle		$11.25 Sold in Pairs
Weather Strip Checkrail 018207		$42.00/20ft. *Includes shipping
Folding Nailing Fin  Part #024194   Used at the head and sides.  Sold in 6 foot lengths		$34.80 per 6ft.

SASHES for Double Hung EASY TILT Primed Wood Windows Save 6% when you order 2 or more.            Discount is applied in the shopping cart. *Hardware is NOT included - sold separately.   *all prices below include shipping - continental US only.
Sash Size  *in inches How to determine size: Click Here	(Width x Height)      Select Sash Size Sash 16 x 12 - 263.67 Sash 16 x 14 - 266.07 Sash 16 x 16 - 279.54 Sash 16 x 18 - 293.04 Sash 16 x 20 - 343.3 Sash 16 x 22 - 359.79 Sash 16 x 24 - 376.26 Sash 16 x 24/36 - 425.79 Sash 16 x 26 - 392.79 Sash 16 x 28 - 409.29 Sash 16 x 30 - 425.79 Sash 16 x 32 - 442.29 Sash 16 x 34 - 458.79 Sash 16 x 36 - 475.29 Sash 16 x 36/24 - 425.19 Sash 16 x 40 - 508.29 Sash 16 x 42 - 524.79 Sash 20 x 12 - 266.07 Sash 20 x 14 - 279.54 Sash 20 x 16 - 329.46 Sash 20 x 18 - 346.53 Sash 20 x 20 - 363.6 Sash 20 x 22 - 380.67 Sash 20 x 24 - 397.74 Sash 20 x 24/36 - 448.95 Sash 20 x 26 - 414.81 Sash 20 x 28 - 431.88 Sash 20 x 30 - 448.95 Sash 20 x 32 - 465.99 Sash 20 x 34 - 483.06 Sash 20 x 36 - 500.13 Sash 20 x 36/24 - 448.95 Sash 20 x 40 - 534.24 Sash 20 x 42 - 551.32 Sash 24 x 12 - 279.54 Sash 24 x 14 - 331.06 Sash 24 x 16 - 348.7 Sash 24 x 18 - 366.3 Sash 24 x 20 - 383.94 Sash 24 x 22 - 401.55 Sash 24 x 24 - 419.19 Sash 24 x 24/36 - 472.08 Sash 24 x 26 - 436.83 Sash 24 x 28 - 454.44 Sash 24 x 30 - 472.08 Sash 24 x 32 - 489.69 Sash 24 x 34 - 507.33 Sash 24 x 36 - 524.98 Sash 24 x 36/24 - 472.08 Sash 24 x 40 - 560.22 Sash 24 x 42 - 577.86 Sash 26 x 12 - 322.44 Sash 26 x 14 - 340.35 Sash 26 x 16 - 358.26 Sash 26 x 18 - 376.18 Sash 26 x 20 - 394.08 Sash 26 x 22 - 412.02 Sash 26 x 24 - 429.94 Sash 26 x 24/36 - 483.66 Sash 26 x 26 - 447.84 Sash 26 x 28 - 465.75 Sash 26 x 30 - 483.66 Sash 26 x 32 - 501.58 Sash 26 x 34 - 519.48 Sash 26 x 36 - 537.4 Sash 26 x 36/24 - 483.66 Sash 26 x 40 - 573.22 Sash 26 x 42 - 591.12 Sash 28 x 12 - 331.5 Sash 28 x 14 - 349.68 Sash 28 x 16 - 367.86 Sash 28 x 18 - 386.07 Sash 28 x 20 - 404.26 Sash 28 x 22 - 422.46 Sash 28 x 24 - 440.64 Sash 28 x 24/36 - 495.2 Sash 28 x 26 - 458.86 Sash 28 x 28 - 477.02 Sash 28 x 30 - 496.4 Sash 28 x 32 - 513.42 Sash 28 x 34 - 531.6 Sash 28 x 36 - 549.82 Sash 28 x 36/24 - 495.2 Sash 28 x 40 - 586.2 Sash 28 x 42 - 604.38 Sash 32 x 12 - 349.56 Sash 32 x 16 - 387.06 Sash 32 x 18 - 405.84 Sash 32 x 20 - 424.58 Sash 32 x 22 - 443.34 Sash 32 x 24 - 462.09 Sash 32 x 24/36 - 518.36 Sash 32 x 26 - 480.86 Sash 32 x 28 - 499.62 Sash 32 x 30 - 518.36 Sash 32 x 32 - 537.12 Sash 32 x 34 - 555.86 Sash 32 x 36 - 574.64 Sash 32 x 36/24 - 518.36 Sash 32 x 40 - 612.15 Sash 32 x 42 - 630.9 Sash 32x 14 - 368.32 Sash 36 x 12 - 367.62 Sash 36 x 16 - 406.26 Sash 36 x 18 - 425.6 Sash 36 x 20 - 444.9 Sash 36 x 22 - 464.22 Sash 36 x 24 - 483.54 Sash 36 x 24/36 - 541.5 Sash 36 x 26 - 502.86 Sash 36 x 28 - 522.22 Sash 36 x 30 - 541.5 Sash 36 x 32 - 560.84 Sash 36 x 34 - 580.14 Sash 36 x 36 - 599.5 Sash 36 x 36/24 - 541.5 Sash 36 x 40 - 638.12 Sash 36 x 42 - 657.42 Sash 36x 14 - 386.96 Sash 40 x 14 - 405.6 Sash 40 x 16 - 425.5 Sash 40 x 18 - 445.34 Sash 40 x 20 - 465.24 Sash 40 x 22 - 485.12 Sash 40 x 24 - 504.99 Sash 40 x 24/36 - 564.66 Sash 40 x 26 - 524.88 Sash 40 x 28 - 544.76 Sash 40 x 30 - 564.66 Sash 40 x 32 - 584.56 Sash 40 x 34 - 604.4 Sash 40 x 36 - 624.3 Sash 40 x 36/24 - 564.66 Sash 40 x 40 - 664.08 Sash 40 x 42 - 683.97 Upper   Lower Larger picture sash sizes Click Here   Cottage style (top and bottom are not the same size) Get a Quote
Glass Type Glass Performance	IG glass Low E + $20 IG and Tempered + $75 Low E and Tempered + $85
Interior Wood Finish Primed wood vs natural unfinished	Select Interior Wood Finish Natural Primed + $20
Hardware Color Tilt latches and lock	Select Color Bronze White Gold tone
Grille Options  *If your old sashes have removable grilles, you MUST buy NEW full surround grilles because your existing ones will not fit.	Select a Grille Option No Grille Flat grille in airspace + $54 Contour grille in airspace + $63 5/8 in. SDL with NO spacer btw glass + $135 1 in. SDL with spacer btw glass + $135 1 in. SDL with NO spacer btw glass + $135 5/8 in. traditional KD grille + $90 1 in. regal KD grille + $90 5/8 in. traditional Full surround grille + $100 1 in. regal Full surround grille + $100 If you are adding a grille, select a design type:        No Grille   Rectangular   Queen Anne
Year of Manufacture The year of manufacture can be found either etched in one of the four corners of the glass or else, stamped or imprinted on the spacer bar between the two panes of glass. If unsure, tell us when they were installed in your house.	What year your windows were installed or mfg?
	Add to Cart

GRILLE PARTS      *Price includes shipping      PLEASE STUDY  these photographs and be sure they look like your clip.  Many   builders and Hurd distributors used aftermarket grills and clips.  If your clips do not   look like the ones in these images, and do not measure exactly 1” or 5/8” wide, our   clips will not work on your grille.
5/8" Traditional Knock Down Type Grille Clips		14.95 Bag of 12
1" Regal Knock Down Type  Grille Clips		18.95 Bag of 12
Push Pin and Grommet Style for Full Surround Door Grilles		29.25 Bag of 12
Grille Clips 092890		18.00 Bag of 6
Screen Retainer Clips 050954		14.99 Bag of 12

     Larger Picture Sashes for Hurd Double Hung Easy Tilt Primed Wood Windows

     Touch-up Paint | Grille Parts
